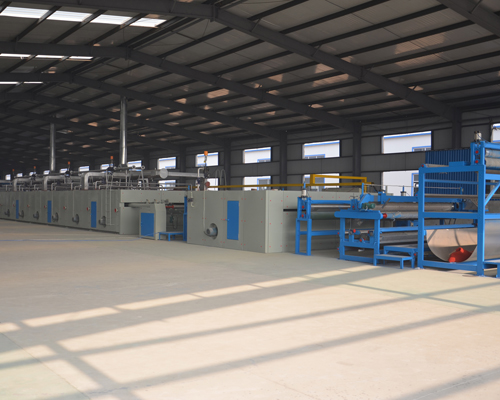

1. Product use:

This machine is suitable for gluing the back of woven and tufted carpets and composite drying and shaping

2. Main parameters:

1. Nominal width: 4000mm

2. Mechanical speed: 0-15m/min.

3. Heat source: steam, natural gas or heat transfer oil

4. Control system: AC frequency conversion synchronous transmission of the whole machine;

3. Process flow of tufted carpet:

A. Compound production line:

Blank blanket unwinding and storing cloth → brushing dust → pre-steaming → weft straightening →-coating back glue (spraying or roller coating) → upper three-proofing → rolling and pressing compound → drying setting machine → cold air cooling → cloth storage rack → rolling device

B. Adhesive production line:

Blank blanket unwinding and storage → dust brushing → pre-steaming → weft straightening →-spraying styrofoam → far-infrared pre-drying → embossing → drying and setting machine → cold air cooling → cloth storage rack → rolling device

C. Wilton, Akmin Carpet Adhesive Combined Machine

Blank blanket unwinding and storage → dust brushing → manual weft correction → pre-steaming-roller coating machine → far infrared drying → large drying cylinder drying → mesh belt drying → cloth storage rack → rolling device
